$389 – $449
GEEKOM A5 Wonderful Outside, Powerful Inside.
Unleash the Power and Visual Splendor
Equipped with the AMD Ryzen 7 5825U processor boasting 8 Zen 3 cores and 16 threads. Enjoy an impressive leap in both single and multi-core performance. Additionally, the AMD Radeon Vega 8 Graphics provide a high level of graphics performance, delivering rich, crisp visuals for gaming, streaming, high-definition video playback and more.
Performance of R7-5825U
| Name |
|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Software size | Starting time | Test file size | Operation response time | CPU temperature | Operation fluency |
|---|---|---|---|---|---|
| 2.60GB | 4.35S | 1.40GB | 0.1- 0.5S | 55-67℃ |  |
| 1.21GB | 2.87S | 167MB | 0.1- 0.5S | 47-51℃ | |
| 1.22GB | 3.65S | 15KB | 0.1- 0.5S | 49-55℃ | |
| 1.95GB | 3.85S | 2.13MB | 0.1- 0.5S | 51-57℃ | |
| 1.86GB | 2.89S | 192MB | 0.1- 0.7S | 59-67℃ | |
| 3.25GB | 4.69S | 133MB | 0.1- 0.7S | 59-67℃ | |
| 1.10GB | 2.96S | 367MB | 0.1- 1.0S | 62-73℃ | |
| 3.50GB | 8.51S | 204MB | 0.1- 1.5S | 53-69℃ | |
| 3.51GB | 5.83S | 319MB | 0.1- 1.5S | 52-72℃ | |
Fast Memory Speeds
The A5 Mini PC offers ample storage for your data and media, allows up to 64GB of memory for speedy data processing, with the option of fitting up to 4TB of storage across two drives - an M.2 2280 PCIe Gen 3 x 4 NVMe/SATA and a 2.5” 7mm SATA HDD. Store your important applications, data, and documents without compromising speed or performance thanks to the impressive read/write speeds of the M.2 SSD.
Enhanced Productivity and Visual Experience
Equipped with two USB 3.2 Gen 2 Type-C (8K) and two HDMI 2.0 (4K) ports, the A5 Mini PC allows for simultaneous use of up to four monitors for ultimate productivity and visual experience. Perfect for office workers, gamers, video editors, or high-end graphic designers.
HDMI 2.0
(4K @60Hz)
HDMI 2.0
(4K @60Hz)
USB 3.2 Gen 2 Type-C
(8K @30Hz)
USB 3.2 Gen 2 Type-C
(8K @30Hz)

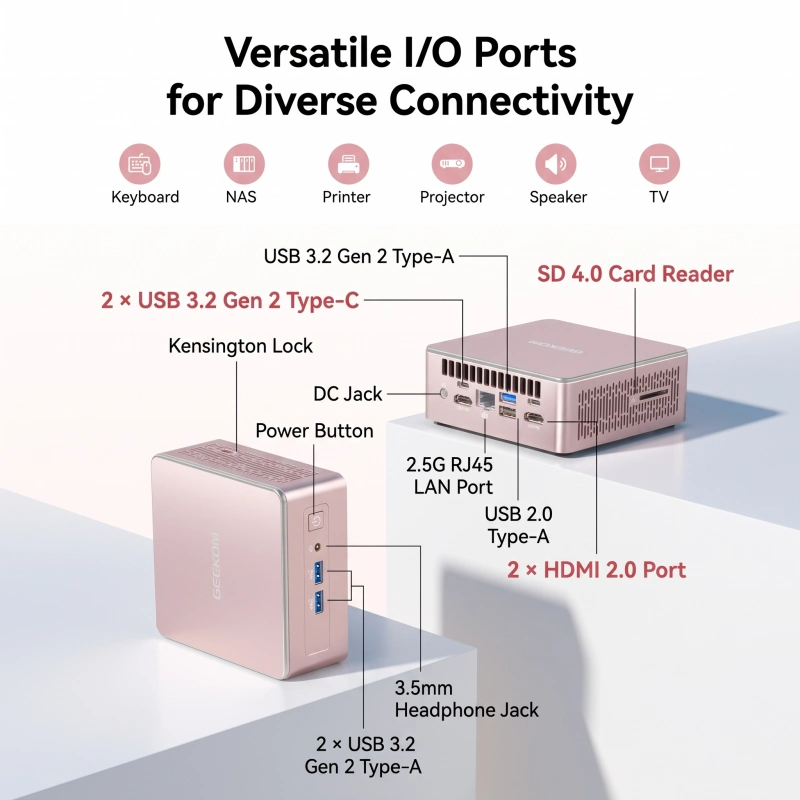

Unleash the Power of Connectivity
The A5 Mini PC is packed with various connection options for a range of devices, including three USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 2 Type-C ports, one USB 2.0 Type-A port, and two HDMI 2.0b ports. The addition of the 2.5G RJ45 LAN port also gives you access to high-speed internet connections for faster data transfer.
① USB 3.2 Gen 2 Type-A
② USB 3.2 Gen 2 Type-C
③ USB 2.0 Type-A
④ HDMI 2.0b ports
⑤ 3.5 mm headphone jack
⑥ 2.5G RJ45 LAN port
⑦ SD card reader
⑧ DC jack
⑨ Power button
A fast, stable, wireless connection
Experience a fast, stable, wireless connection with Wi-Fi 6 and Bluetooth 5.2 on the A5 Mini PC. Enjoy instant data transfers with speeds up to 3 times faster than Wi-Fi 5. Spend less time waiting while streaming, working, or getting more done on the go!
WiFi 6
100%
WiFi 5
75%
25%

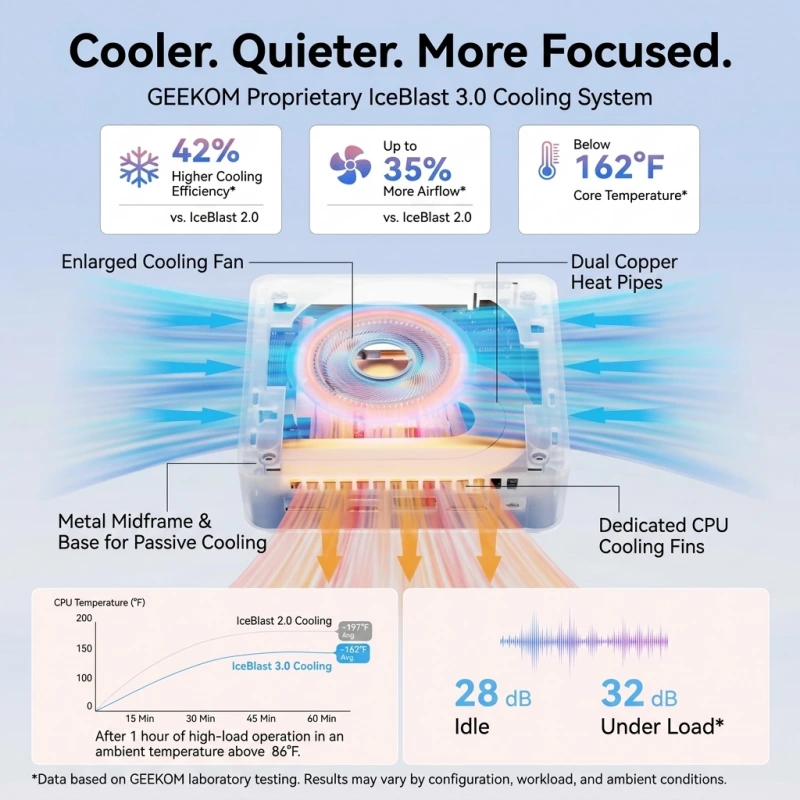

Stay Cool, Stay Efficient
The GEEKOM A5 Mini PC features a powerful built-in cooling fan providing efficient and reliable cooling for optimal performance, even under heavy workloads, while minimizing overheating and noise
Embrace the Trend-Setting Difference
The GEEKOM A5 Mini PC stands out from the crowd with its sleek and stylish rose gold color, making it a perfect fit for modern and classic styles alike and adding a unique, sophisticated touch to any tech setup, at home or in the office.
Maximize Your Desk Space
A clunky desktop or laptop rarely helps during trips or commutes and always takes up lots of space. In contrast, the GEEKOM A5 weighs only 0.65KG and measures only 117 x 112 x 49.2mm. It perfectly fits into your briefcase and can be easily mounted behind the monitor with the VESA bracket included in the package
High-Strength Metal Frame
High-strength metal and plastic frame design to prevent deformation caused by drops or external force compression. Effectively improves the anti-static and electromagnetic interference level of the product.
Multiple Tests & Strict Quality Control
Enhance Productivity
AMD Ryzen 7 5825U CPU, based on the Zen 3 architecture and manufactured using TSMC's 7nm process, provides GEEKOM A5 with superior computing power and unprecedented improvement in multitasking capabilities.
Effortlessly Engage in Multimedia Editing
Equipped with Radeon Vega 8 Graphics, GEEKOM A5 delivers smooth performance for image video editing. Its compact size and lightweight design make it ideal for on-the-go creativity, allowing you to work on your projects from anywhere, at any time.
Leisure & Surfing
Whether you're engaging in immersive gaming sessions, connecting with friends through social media or web browsing, its compact size and sleek design make it the perfect companion for your leisure activities.
Home Theater & Streaming
Featuring high-quality graphics, GEEKOM A5 brings your entertainment to life, delivering stunning visuals that create an immersive viewing and streaming experience.
Pre-installed
Windows 11 Pro
system
Pre-installed Windows
11 Pro system
Our Service
3-Year Warranty
Fast Free Shipping
24-Hour Customer
Service Response
| Form Factor | 117 × 112 × 38 mm |
| CPU | AMD Ryzen™ 7430U |
| AMD FP6 TDP Barcelo U series 20W | |
| Video Engine Processor | AMD Radeon™ Graphics |
| Memory | Dual channel DDR4 260PIN 3200MHz SODIMM, up to 64GB |
| Audio | HDA CODEC |
| Storage | 1 × SSD (NVMe ×4 Gen 3/SATA), 512G |
| 1 × 2.5" SATA HDD (Tall Chasis) | |
| I/O Port | 1 × rear USB 3.2 Gen 2 Type-A |
| 1 × rear USB 2.0 Type-A | |
| 1 × front USB 3.2 Gen 2 Type-A support Power Delivery | |
| 1 × front USB 3.2 Gen 2 Type-A | |
| 2 × USB 3.2 Gen 2 Type-C support Power Delivery (back panel) | |
| 1 × 3.5mm front stereo headset jack | |
| 1 × RJ45 (back panel) | |
| 2 × HDMI 2.0 (back panel) | |
| 1 × DC in (back panel) | |
| 1 × Power Button | |
| 1 × Kensington Lock | |
| 1 × SD Card | |
| Internal Connector | 1 × M.2 key-M slot for PCIe ×4 Gen 3 NVMe/SATA SSD |
| 1 × M.2 key-B slot (SATA) | |
| 1 × M.2 2230 for WIFI PCIe card only | |
| 1 × FAN | |
| Wireless Charging power (option) | |
| 2 × USB 2.0 | |
| 1 × 16-pin FPC SATA connector to connect an FFC SATA cable to a 7mm 2.5" SATA | |
| LED | 2 × POWER LED (Power On: White) |
| Ethernet | 10/100/1000/2500 Mbps RJ45 |
| Wireless LAN | M.2 Wi-Fi 6 AW-XB547NF, Blutetooth 5.2, 22mm*30mm*2.25mm |
| or M.2 Wi-Fi 6 AW-XB468NF, Blutetooth 5.2, 22mm*30mm*2.25mm | |
| Kensington Lock | Yes |
| DTPM2.0 | Support DTPM 2.0 |
| Battery | RTC coin battery |
| Adapter | 19V power supply adapter (65W for Barcelo U) with geo-specific AC cord (IEC C5) |
| PCBA Dimension | 105.75 × 102.9 × 1.6 mm |
| Certification | CE, FCC, CB, CCC, SRRC, RoHS, PSE, TELEC, CEC |
| Operating system | Microsoft Windows*11(64-bit) support Modern Standby |
| Accessory | VESA Mount (option) |
